产品简介 Product Profile

• 在某些特殊应用领域或前瞻性项目的液压传动系统设计中，设计者可能遇到没有适用液压元件可选的难题。基于“响应前沿技术需求、关注特殊应用领域”的理念，当市场上的通用型液压元件不能满足使用需求时，本公司或能提供成套解决方案，并按需定制研发所需的液压泵/马达、液压阀、液压缸等配套液压元件。

In the design of hydraulic transmission systems for some special applications or prospective research projects, designers may encounter the difficulty of having no suitable hydraulic components to choose from. When the general hydraulic components on the market can not meet the needs of client, the company may be able to provide complete sets of solutions, customize and develop the required hydraulic pump/motor, valve, cylinder and other supporting hydraulic components.

• 用户订购产品时仅需提出详细使用需求，而不必受限于本文所列案例。

Clients only need to provide detailed requirements when ordering products, not limited to the cases listed in this article.

• 定制液压泵、马达、油缸时，如果没有现货，起订量一般不小于10台。

When customizing hydraulic pump, motor or cylinder, if there is no stock, the MOQ is generally not less than 10 pcs.

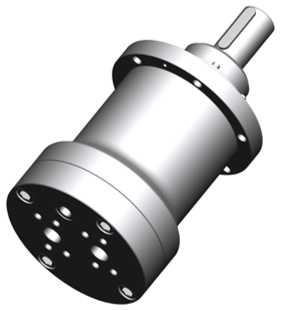

    HYC-M12F25B 深海驱动液压马达 Hydraulic Motors Driving in the Deep Sea

• 适用于3000米深海驱动，抗海水腐蚀

Suitable for driving in the deep sea, resistant to corrosion

• 要求油箱配置水压补偿器

The tank is required to be equipped with water pressure compensator

• 公称排量 Nominal displacement：25cc/r

• A/B口最高压力 Port A/B max pressure：海水压力 Seawater pressure + 28MPa

• T口最高压力 Port T max pressure ：海水压力 Seawater pressure + 0.3MPa

• 额定转速 Rated speed ：2500rpm

• 旋向 Direction of rotation：双向 Bidirectional

• 重量 Weight：13.5kg

• 产品的外形安装尺寸请在产品手册中获取。

Mounting dimensions of the product can be obtained in Product Manual.

    HYC-M12F43B 深海驱动液压马达 Hydraulic Motors Driving in the Deep Sea

• 适用于3000米深海驱动，抗海水腐蚀

Suitable for driving in the deep sea, resistant to corrosion

• 要求油箱配置水压补偿器

The tank is required to be equipped with water pressure compensator

• 公称排量 Nominal displacement：43cc/r

• A/B口最高压力 Port A/B max pressure：海水压力 Seawater pressure + 28MPa

• T口最高压力 Port T max pressure ：海水压力 Seawater pressure + 0.3MPa

• 额定转速 Rated speed ：2200rpm

• 旋向 Direction of rotation：双向 Bidirectional

• 重量 Weight：17.6kg

• 产品的外形安装尺寸请在产品手册中获取。

Mounting dimensions of the product can be obtained in Product Manual.

    HYC-M12F120B 深海驱动液压马达 Hydraulic Motors Driving in the Deep Sea

• 适用于3000米深海驱动，抗海水腐蚀

Suitable for driving in the deep sea, resistant to corrosion

• 要求油箱配置水压补偿器

The tank is required to be equipped with water pressure compensator

• 公称排量 Nominal displacement：120cc/r

• A/B口最高压力 Port A/B max pressure：海水压力 Seawater pressure + 35MPa

• T口最高压力 Port T max pressure ：海水压力 Seawater pressure + 0.3MPa

• 额定转速 Rated speed ：2000rpm

• 旋向 Direction of rotation：双向 Bidirectional

• 重量 Weight：50.5kg

• 产品的外形安装尺寸请在产品手册中获取。

Mounting dimensions of the product can be obtained in Product Manual.
